Features & Details
Features
- High Efficiency Airless (HEA) technology decreases overspray by up to 55% compared to traditional airless sprayers
- Multi-position Use: stationary, backpack style, or carry by hand
- Sprays up to 350 square feet (1.25 gallons / 1 tank fill) on a single charge of one 2Ah battery
- Includes durable, composite construction T2 spray gun and 515 spray tip which is great for paints, primers and solid stains
- Includes two Bosch 2Ah batteries and charger (accommodates up to 8Ah), which is compatible with all AmpShare Powered by Bosch tools
- Concealed battery position to protect the battery
- 9’ hose length with swivel feature and on-board hose management system
- Variable speed control for the ability to fine tune your spray based on the material you’re spraying and project needs
- Holds 1.25 gallons of material in a hopper with a sealed lid
Details
The ControlMax™ 1650 18V Cordless High Efficiency Airless™ provides the ultimate mobile spraying solution. The battery powered paint sprayer allows you to spray anywhere your project or job takes you. Using High Efficiency Airless technology it decrease overspray by up to 55% compared to traditional airless with a softer spray pattern for easy overlap. Great for jobs like painting or staining outbuildings, pergolas, cabin structures, playgrounds parks/recreation areas, garage doors, field striping and so many more. The sprayer offers various helpful features and capabilities to make the project easier including a 9 ft. hose with on-board management system, multi-position use – backpack, on the group or carry in your hand. Variable speed control to fine tune your spraying speed, adjustable & removable straps, onboard storage for tips and a concealed battery position to protect the battery. This sprayer includes two 2Ah AmpShare Powered by Bosch batteries and a charge (accommodates up to 8Ah) which can be used with all Bosch tools. Each 2Ah battery can spray up to 350 square feet (1.25 gallons/1 tank fill) on a single charge (dependent on coating and settings). The ControlMax 1650 18V Cordless sprayer is a great solution of general contractor and hand persons who want a versatile spraying system with the hassle of electrical cords and outlets.
0.24
Gallons/Min.
0.015″
Max. Tip Size
0.52
Horsepower
2
Batteries Included

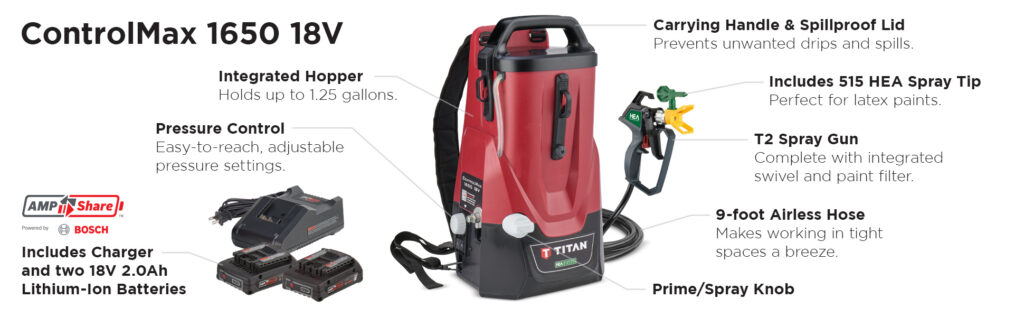

Product Walkaround

Charts & Guides
Tip Recommendation Chart

Here are the High Efficiency Airless (HEA) tips you should use with your sprayer for various coatings and desired pattern width
COATINGS | TIP # | PATTERN WIDTH | COMPATIBILITY |
---|---|---|---|
Polyurethane, Water-Based Lacquer, Transparent Stain, Semi-Transparent Stain | 211 | 4-6″ | |
311 | 6-8″ | ||
Polyurethane, Water-Based Lacquer, Semi-Transparent Stain, Solid Stain | 313 | 6-8″ | |
413 | 8-10″ | ||
Solid Stain, Water and Oil-Based Paint & Primer | 515 | 10-12″ | Included |
ControlMax App
Take your painting productivity to the next level with the free ControlMax App
Product Documents
Titan ControlMax 1650 18V Operating Manual
